Dr4019s (Milpitas, )

Dr4019s

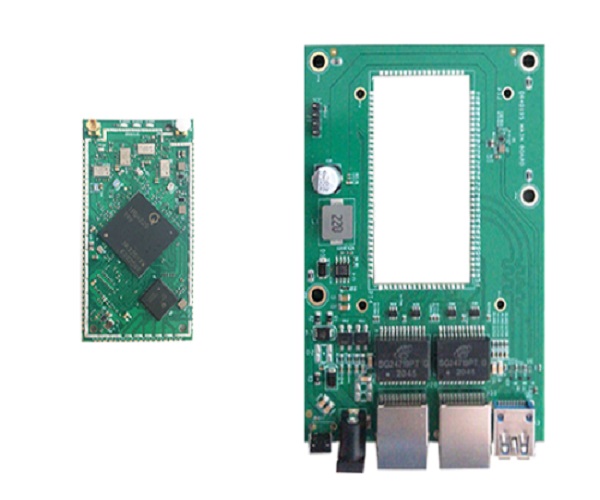

www.wallystech.com Featuring withindustrial-grade IPQ4019  chipset Integrated with 2x 2 5G high power Radio module and 2x2 2.4G high power  Radio module Support 5.180GHz to5.825GHz Frequency Range; Support 2.412GHz to 2.482GHz Support 2 x 5G MMCX Connectors and 2x2.4G MMCX 20MHz/40MHz/80MHz Bandwidth Support 11ABGN/AC RoHS compliance ensure a high level protection of human health and the environment from risks that can be posed by  Absolute Maximum Rating Parameter Rating Unit Supply Voltage 24V~48 V Operating Temperature Range -40 to + 70 ?C Storage Temperature Range -45 to + 105 ?C Operating Humidity Range 5 to + 95 (non-condensing) % Storage Humidity Range 0 to + 90 (non-condensing) %   Hardware Specifications Symbol Parameter CPU IPQ4019（Quad core ARM Cortex A7 at 716.8 MHz） Antenna Connector 2 x 5G MMCX connectors;2x2.4G MMCX 10/100/1000Mbps      Gigabit Ethernet   2xRJ45 DC Jack 12 power supply ROHS Compliance YES Dimension 65mmx35mm x 16mm Max Power 12V x 0.8A= 9.6W Nor Flash 32MB DDR 256MB   Radio TX Specifications(5180MHz-5825MHz) Operating Mode Data Rate Power Tolerance 1 Chain 2 Chains 802.11a 6 Mbps 26dBm 29dbm ?2dB 54 Mbps 22dBm 25dbm ?2dB 802.11n HT20 MCS0, MCS8 26dBm 29dbm ?2dB MCS7, MCS15 22dBm 25dbm ?2dB 802.11n HT40 MCS0, MCS8 25dBm 28dbm ?2dB MCS7, MCS15 21dBm 24dbm ?2dB 802.11ac MCS0, MCS10, MCS20 25dBm 28dbm ?2dB MCS9, MCS19, MCS29 19dBm 22dbm ?2dB
