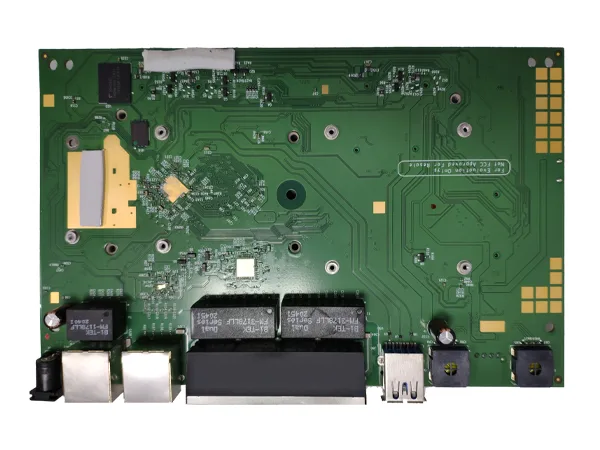

Dr5018

www.wallystech.com Dual-core ARM 64bit [email protected] Processor 512MB DDRL3L System Memory 4MB NOR Flash, 128MB NAND Flash 2x2 On-board 2.4GHz radio, up to 573Mbps physical Data Rate Support BT5.1 Two PCIe2.0 connector can support QCN90xx production Absolute Maximum Rating Parameter Rating Unit Supply Voltage 12 V Operating Temperature Range -40 to + 70 ?C Storage Temperature Range -45 to + 105 ?C Operating Humidity Range 5 to + 95 (non-condensing) % Hardware Specifications Symbol Parameter CPU Qualcomm-AtherosIPQ5018 CPU Frequency Dual-core ARM 64 bit A53 @1.0 GHz processor System Memory 512MB DDR3L 16-bit interface with 32-bit memory bus design Ethernet Port 4 x 1Gbps Ethernet Ports or 1X2.5Gbps Ethernet Port； 1 x1Gbps Ethernet Port NGFF Slot 2 X M.2 (NGFF) ?E Key? Socket with MiniPCIe 2.0(For WiFi Module) EMMC 4G/8G(optional) USB /header 1x USB 3.0 Port POE NA DC Jack 12V power supply LED header LED for power , Wifi strength Serial Port support Wireless On-board 2x22.4GHz MU-MIMO OFDMA 802.11b/g/n/ax, max 23dBm per chain 2x IPEX Connectors Bluetooth BT5.1 Nor Flash 4MB Nand Flash 128 MB DDR 512MB Dimension 185mm x 116mm

27-12-2025 UNITED STATES, Milpitas,,

Price: 200 USD

Category: Computers & Networking

E-mail Tian: +8617366272175
