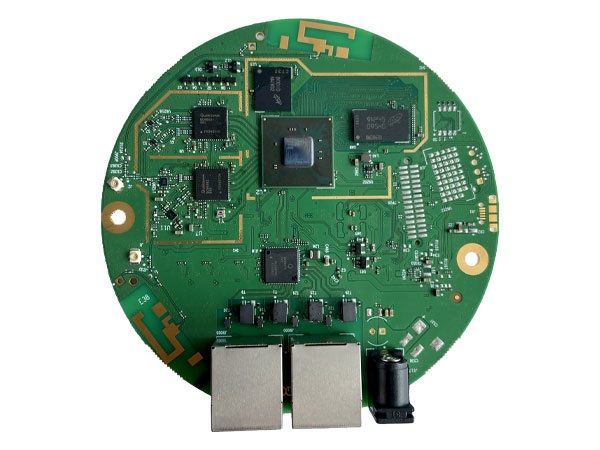

Dr6000

www.wallystech.com Qualcomm-Atheros IPQ6000 Quad-core ARM 64 bit A53s 1.2GHz processor 2.4GHz, 2x2 MU-MIMO OFDMA Technology, up to 573Mbps 5GHz, 2x2 MU-MIMO OFDMA Technology, up to 1201Mbps 2 on board radios (Dual Band Concurrent Radio) Supports Dynamic Frequency Selection (DFS) Absolute Maximum Rating Parameter Rating Unit Supply Voltage 12 V Operating Temperature Range -20 to + 70 ?C Storage Temperature Range -45 to + 90 ?C Operating Humidity Range 5 to + 95 (non-condensing) % Storage Humidity Range 0 to + 90 (non-condensing) %    Hardware Specifications Symbol Parameter CPU Qualcomm-Atheros IPQ6000 CPU Frequency Quad-core ARM 64 bit A53 @1.2GHz processor System Memory DDR3L 512MB 16-bit interface Nand Flash 128MB NOR Flash 16MB Ethernet Port 2x 1Gbps Ethernet Ports DC Jack Input 1x DC Jack Connector: 12V Power Consumption(Board Only) 1TD On Board Radio 2 radios (Dual band concurrent radio) Wireless On-board 2x2 2.4GHz MU-MIMO OFDMA 802.11b/g/n/ax, max 20dBm per chain On-board 2x2 5GHz MU-MIMO OFDMA 802.11a/n/ac/ax, max 20dBm per chain 2x U.FL Connectors, diplexer allows dual band concurrent operation Frequency Range 2.412~2.472GHz, 5.150~5.825GHz 2.4GHz Data Rate 2x2 MU-MIMO OFDMA Technology, up to 573Mbps 5GHz Data Rate 2x2 MU-MIMO OFDMA Technology, up to 1201Mbps Modulation Techniques OFDMA: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024QAM LED 4x LED Indicators USB /Header 1x MicroUSB 2.0 Port Serial Port 1x Serial Interface 12 Pin Connectors Certification TBD Humidity Operating: 5% to 95% (non-condensing) Storage: Max. 90% (non-condensing) Temperature Range Operating: TBD Storage: -40?C to 90?C Dimension (Diameter x Height) 100mm x 23.5mm (Without Heatsink)    Radio TX Specifications For 2.4GHz Operating Mode Data Rate Power Tolerance 1 Chain 2 Chains
