Dr40x9 (Milpitas, )

Dr40x9

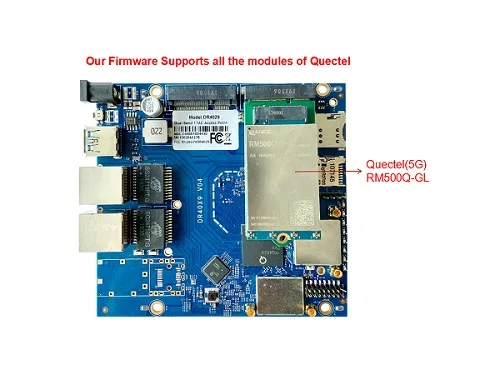

www.wallystech.com Featuring with industrial-grade IPQ4019/IPQ4029 chipset Integrated with 2x 2 5G high power Radio module and 2x2 2.4G high power Radio module Support 4.940GHz to 5.825GHz Frequency Range Support 2.400GHz to 2.482GHz Support 2 x 5G MMCX Connectors and 2x2.4G MMCX Support 5MHz/10MHz/20MHz/40MHz/80MHz Bandwidth Support 11ABGN/AC Support fixed data rate RoHS compliance ensure a high level protection of human health and the environment from risks that can be posed by chemicals Our Firmware supports all the modules of Quectel Absolute Maximum Rating Parameter Rating Unit Supply Voltage 24V~48 V Operating Temperature Range -40 to + 70 ?C Storage Temperature Range -45 to + 105 ?C Operating Humidity Range 5 to + 95 (non-condensing) % Storage Humidity Range 0 to + 90 (non-condensing) %    Hardware Specifications Symbol Parameter CPU IPQ4029（Quad core ARM Cortex A7 at 716.8 MHz） Antenna Connector 2 x 5G MMCX connectors;2x2.4G MMCX 10/100/1000Mbps Gigabit Ethernet  2xRJ45 SFP connector 1xSFP fiber module connector (optional) 3G/4G connector 1xminipcie 3G/4G connector support with two sim card USB connector 1xUSB 3.0 connector POE 24V~48V passive POE DC Jack 24V~48V power supply ROHS Compliance YES Dimension 115mm x 105mm x 16mm Max Power 48.1V x 0.180A= 8.658W Nor Flash 2MB~32MB Nand Flash 128MB DDR 256MB~512MB    Radio TX Specifications(5180MHz-5825MHz) Operating Mode Data Rate Power Tolerance 1 Chain 2 Chains 802.11a 6 Mbps 27dBm 30dbm ?2dB 54 Mbps 23dBm 26dbm ?2dB 802.11n HT20 MCS0, MCS8 26dBm 29dbm ?2dB MCS7, MCS15 22dBm 25dbm ?2dB 802.11n HT40 MCS0, MCS8 25dBm 28dbm ?2dB MCS7, MCS15 21dBm 24dbm ?2dB 802.11ac MCS0, MCS10, MCS20 25dBm 28dbm ?2dB
