Dr8074a(hk01) (Milpitas, )

Dr8074a(hk01)

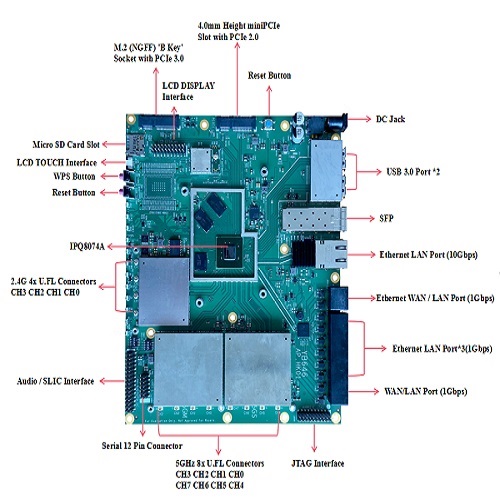

www.wallystech.com Features Qualcomm Atheros IPQ8074A AR Quad Core CPU On-board 5GHz radio, up to 4804Mbps physical data rate 32MB NOR Flash, 256MB NAND Flash On-board 2.4GHz radio, up to 1147Mbps physical data rate Support 11ax TX Beamforming Support 11ac/ax MU-MIMO DL and UL Support OFDMA DL and UL Tri-band support with 5G SBS (4x4/5GHz + 4x4/5GHz) + 4x4/2.4GHz Supports Dynamic Frequency Selection (DFS) Absolute Maximum Rating Parameter Rating Unit Operating Temperature Range -20 to + 70 ?C Storage Temperature Range -40 to + 90 ?C Operating Humidity Range 5 to + 95 (non-condensing) % Storage Humidity Range 0 to + 90 (non-condensing) %   Hardware Specifications Symbol Parameter CPU Qualcomm Atheros Quad Core ARM Cortex 64-bit A53 Processor IPQ8074A 2.2GHz CPU CPU Frequency Derived from Qualcomm Atheros AP.HK01 System Memory 1GB (2x 512MB) DDR3L 32-bit interface Frequency Range 2.412GHz to 2.472GHz, 5.150GHz to 5.825GHz Modulation Techniques OFDMA: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM NGFF Slot for 5G Module M.2 (NGFF) ?B Key? Socket with PCIe 3.0 interface Optional Onboard Modules Supports 1x BT module, 1x ZigBee module, 1x Touch pad connector, 1x Audio header, 1x LCD display header Flash NOR Flash: 32MB NAND Flash: 256MB eMMC: 8GB Wireless On-board 4x4 2.4GHz MU-MIMO 802.11b/g/n/ax, max TBDdBm per chain On-board 2x(4x4) or 8x8 5GHz MU-MIMO 802.11a/n/ac/ax, max TBDdBm per chain 12x U.FL connectors Reset Buttons 2x Hardware reset button, 1x WPS reset button DC Jack Input 1x DC Jack Connector: 12V, 5A   Interface 5x Gigabit Ethernet (1GbE) LAN/WAN RJ45 Port (Auto MDI-X)  1x 10Gigabit Ethernet (10GbE) LAN/WAN RJ45 Port (Auto MDI-X) 1x SFP+ Port 2x USB 3.0 Port 1x Serial Port 12 Pin Connector 1x JTAG 20 Pin Connector 1x micro SD Card Socket 1x M.2 Slot LED 13x LED indicators, 2 additional LED on Ethernet port Power Consumption TBD
