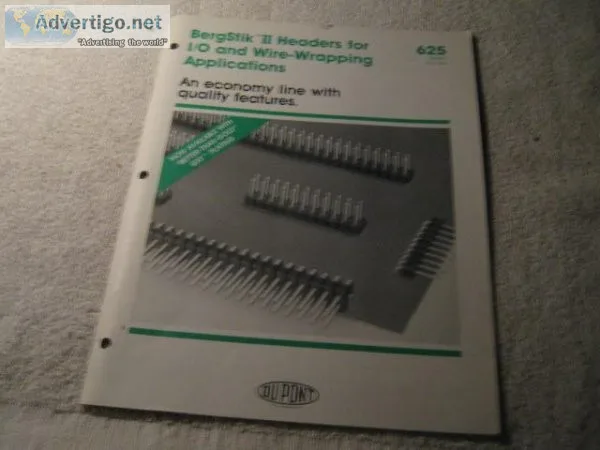

BergStik&trade II headers come with stand-offs top and bottom. (Catlett, VA)

BergStik&trade II headers come with stand-offs top and bottom.

Local pick-up preferred (please call first) but will ship at the buyer s expenseKingston Books 15 IMG_8015Illustrated Physical Characteristics Recommended P.C.B Hole Patterns Performance DataBergStik II Headers offer Industry the widest variety of pin lengths and platings. BergStik II headers are available in Berg s GTX Palladium-Nickel plating as well as in tin of gold. GTX plating is superior to gold in terms porosity Solderability bend ductility. Creep corrosion resistance environmental resistance and wear resistance. Drawn wire pins provide smooth contact surfaces on all sides. The smooth pin surfaces ensure a superior electrical connection.. The sharp corners afforded by the drawn wire process are excellent wire-wrapping points.Tapered pin lead-in permits easy insertion in the P.C. board for female disconnect or wire-wrapping applications.Manual insertion into the P.C. board allows on-line production without machine eliminating expensive capital investments and minimizing labor costs.BergStik II headers can be broken to desired length reducing inventory requirements on low volume sizes.Available in straight and right-angle versions.Stackable side-by-side and end-to-end.Positions Single row 1 through 36. Double row 2 through 72.Manufacturing process allows for lower cost by pressing the pins into the flame retardant plastic.Products in this catalog are recognized under the Component Program of Underwriters Laboratories Inc.11 pages
