Finn Power CNC Shearing Punching System (Chicago, IL)

Finn Power CNC Shearing Punching System

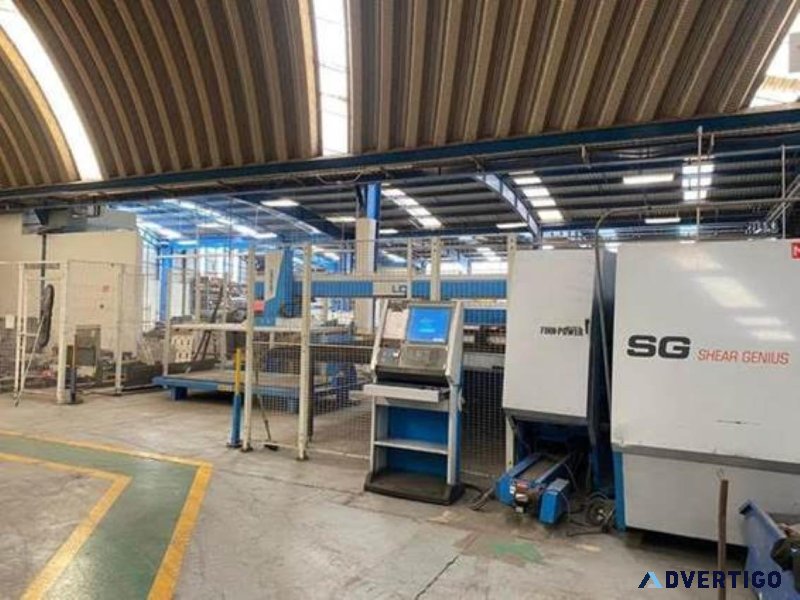

Finn Power CNC Shearing Punching System P.O.R. - Price on RequestFinn Power SG6 12.61 30 Ton CNC Shearing Punching System (2010) Available for PurchaseOverviewPresenting an exceptional opportunity to acquire the Finn Power SG6 12.61 a 30 Ton CNC Shearing Punching System from 2010. This equipment is ideal for businesses seeking a high-quality durable and precise machine for shearing and punching operations.Key SpecificationsGeneral FeaturesTonnage Capacity 30 Ton Number of Turret Stations 20 Control System CNC featuring Siemens Sinumerik 840D Performance and DimensionsMaximum Sheet Size 60 x 120 Maximum Work Piece Weight 440 Lbs. Maximum Material Thickness .3125 Axis Speeds (X Y) 3460 IPM 2362 IPM Maximum Linear Speed 3937 IPM Maximum Punch Diameter 3.5 Punching Rate on Center (1 ) 440 HPM Special FeaturesIntegrated Right Angle Shear Cutting Capacity 31.5 x 60 Ram Force 300kn (Equivalent to 29.4 Ton) Punching Stroke Servo Hydraulic Number of Tool Stations in Turret 20pcs (Thick Turret) Detailed CapabilitiesCNC Index ToolNumber of Index Tool Stations Standard 2 Pcs (Max. 10pcs) Punch Diameter Max. 89mm Tool Rotation Max. 166r Min Upforming Cylinder (Indexable Optional)Force and Stroke Length 250kn Integrated Right Angle ShearMaterial Thickness Capacity Aluminium 5mm Steel Fe52 Fe37 4mm Minimum Material Thickness 0.5mm Full Stroke Shear Dimensions X x Y Max. 1000x1528mm Blade Specifications X-Blade 1005mm Y-Blade 1532mm Blade Clearance Setting Automatic (ACS) Additional SpecificationsSheet Weight Capacity Max 200kg Clamps Pneumatic 3pcs (Optional 4 Pcs) Sheet Size Max. 3074mm X 1524mm (Sg6) 4300mm X 1524mm (Sg8) Axis Travels X-Traverse 3144mm Y-Traverse 1615mm Axis Speeds X-Traverse Axis Max 120m min Y-Traverse Axis Max 90m Min Positioning Speed Max 150m Min Punching Accuracy High precision as per Lkp-7100 standards Turret Rotation Speed 30 R Min Tool Change Time 1 3 seconds CNC Control and EquipmentCNC Control Siemens Sinumerik 840D with Program Memory of 1.5MB Connectivity Ethernet Connection 100 Mbps Machine Weight 26000kg Hydraulic Unit Drained Weight 600kg Oil Tank Volume 200 liters Oil Cooler Specifications Cooling Capacity Max 0.64 Kw C Air Flow 2.1 M Additional EquipmentTurret Setup Includes 21 Station Turret with Thick Turret and Auto Index Stations Programmable Work Clamps Auto Repositioning and Brush Tables Finn Power Shear Genius Loader Tooling Accessories Various Pota Pinzon and Dice Holders Contact and Purchase InformationFor inquiries demonstrations or purchase details please contact Brian ((at)) AlltechIndustrialServices.com 1-888-884-2447 extension 11. This Finn Power SG6 system represents an outstanding investment for businesses aiming to enhance their fabrication capabilities with a high-performance precise and versatile machine. Service tech available for decommission and recommission of this machine in Mexico or the USA Rigging & Freight
