Kenmore 158.17570-17571-1757 2 Sewing Machine Instruction Manual (New York, NY)

Kenmore 158.17570-17571-1757 2 Sewing Machine Instruction Manual

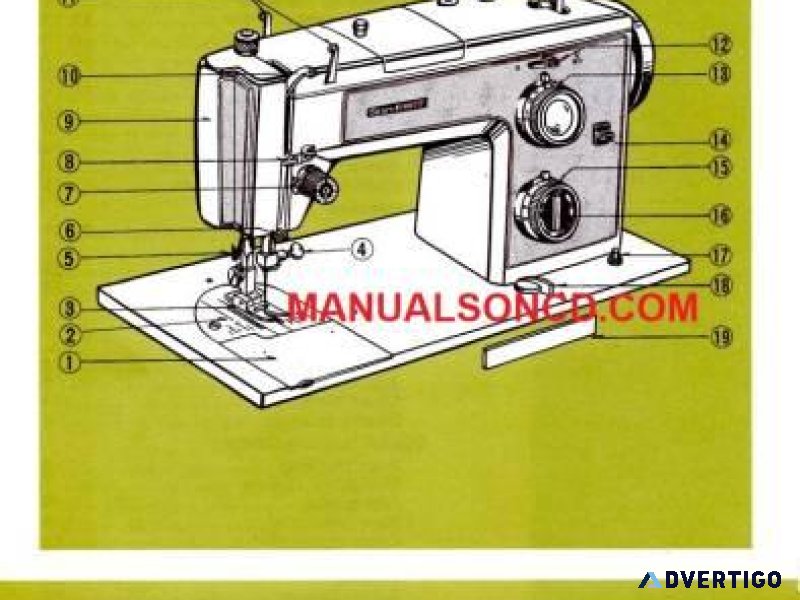

Kenmore 158.17570-17571-17572 Sewing Machine Instruction Manual. This manual is available here- manualsoncd.com Includes Threading the machine. Bobbin winding. Threading top tension. Zigzag stitching. Metal cam. Pressure regulator. Feed dog control. Multi purpose needle plate. Take-up lever. Seam guide lines. Cam setting. Buttonhole making. Zipper application. Reverse stitch designs. Parts list. Oiling. Cleaning. Much more 59 page instruction manual.Kenmore models 158.17570 158.17571 158.17572 158.1757 Kenmore 158.17570-17571-17572 Sewing Machine Instruction Manual Winding the bobbin1. Draw thread from spool through bobbin winder tension disc. 2. Wind thread around an empty bobbin several times. 3. Place bobbin onto bobbin winder shaft with thread wound on bobbin clockwise. Push bobbin winder latch against bobbin until it clicks. 4. Release clutch by pulling hand wheel as shown in figure 4. Start machine holding on to end of thread. 5. When bobbin is slightly filled released end of thread. When bobbin is full winding mechanism stops. 6. Push in hand wheel to return to switching position. Remove bobbin. Threading the bobbin case1. To remove bobbin from the shuttle raised needle to its highest position. Remove hand hole cover plate. 2. Pull open latch of bobbin case. 3. Pull bobbin case straight out of shuttle. 4. Insert bobbin into bobbin case making sure thread is coming from bobbin as shown. 5. Pull thread through slot of case as shown. 6. Pull thread under tension spring. 7. Holding latch open position case into shuttle and release latch. Case should lock into place when latch is released. 8. Hold needle thread loosely in the left hand and rotate handwheel towards you one complete turn. Bring bobbin thread up by pulling upper thread. Threading of top threadPlace thread on spool pin as shown with thread coming from back of the spool. Draw thread through the top threading tube. Holding the spool stationary with right hand pull the end of the thread between the tension discs as shown. Pull the spring wire loop up and past the top hook until the thread can be slipped into hook see figure 2. When the thread is released the spring wire loop will return to position figure 3 with thread in proper place. Release spool of thread and hook thread into take up lever as shown in figure 4. Continue to thread machine exactly as shown. Needle must always be threaded in direction as shown in figure 5. THIS IS A DOWNLOAD MANUAL YOU CAN PRINT OR SAVE AND VIEW ON ANY DEVICE. More sewing machine manuals are available here- manualsoncd.com We are a family run business serving the sewing community for over 20 years. Have fun sewing Let us know if you need a manual for your machine.
