Unique 313 Miter Door Machine (Los Angeles, CA)

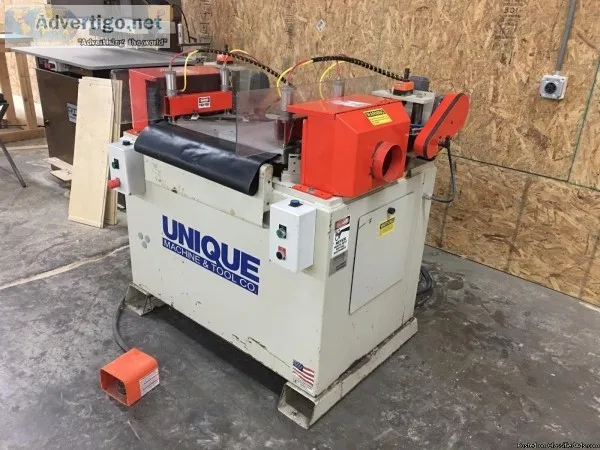

Unique 313 Miter Door Machine

UNIQUE 313 MITER DOOR MACHINE In very good working order.. Email us if you have further questions... Model 313 features an automatic cycle with dowel drilling for accurate and easy alignment of mitered corners. Highly visible guards foot valve operation to actuate clamping and dual hand actuated start buttons make this machine both easy to use and safe to operate. DESIGN FEATURES No pre-cutting of the miter is necessary with the Unique system frames can be cut to finish size before the joint is machined The Y axis movement of the precision table is guided by Thomson shafts and linear bearings Air over oil rod-less cylinder smoothly drives the table past the shapers automatically Two pneumatic clamps hold the work-piece on either side while the parts are being shaped Highly visible guards protective clamp bar and poly-carbonate shield keep the operator protected while operating the machine Fine adjustments can be made to the position the dowel hole location in any direction Digital indicators make the dowel (Z) height easy to position quickly and accurately on either side Staggered tables allow two 1 thick parts to be machined simultaneously The position of the finger joint in the part can be adjusted to achieve the desired location Compact design takes up very little space yet is capable of machining any length parts The automatic cycle is controlled by a maintenance free PLC with software built in by Unique TECHNICAL SPECIFICATIONS (2) 5 HP shapers with 1-1 4 diameter counter rotating spindles (2) 1 3 HP dowel alignment drills Automatic cycle with dowel hole boring for accurate alignment of mitered door corners 15 seconds per cycle 1 material thickness capacity 4 maximum material width 5 maximum cutter diameter 36 work height Pneumatic clamping system locks during operation for safe machining of parts Adjustable stops for dowel drilling Air over oil rod-less cylinder driven table Staggered tables with angled fences allow (2) 1 thick parts to be machined simultaneously digital position indicator (2) Finger joint cutters included (includes backers and carbide inserts) Dust Collection (2) 5 dust ports require approx. 1 000 CFM per spindle Compressed Air Requirements 90 PSI (1 CFM) Machine weight Approximately 1 200 lbs
