OPP9525 Passive RFID tag with long reading distance (PUTIAN)

OPP9525 Passive RFID tag with long reading distance

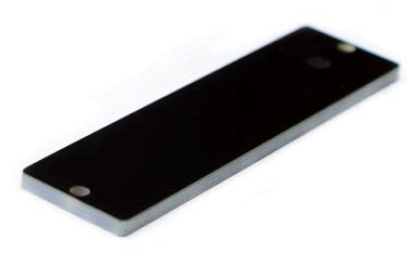

OPP9525 is an UHF metal-resistant RFID tag with FR-4 substrate and etched copper foil antenna. Sized in 95 25 3.5mm the reading distance can reach up to 5.8 meters by handheld reader and 9.5 meters by fixed reader. The test distance varies and depends on the environment and antenna gain. The chip of OPP9525 could be Alien Higgs3 or Impinj Monza 4QT we can customized as per customer s special requirements. Protocol EPC Class1Gen2 (ISO18000-6C) Operating Frequency FCC (902-928) MHz. Installation method can by screwing or sticked by 3M adhesive. Operating temperature (-40 150 C) .The performance of OPP9525 is superior to similar products meanwhile it s quite cost-effective.Functional SpecificationsRFID Protocol EPC Class1 Gen2 ISO18000-6CFrequency US 902-928MHzIC type Alien Higgs-3 Impinj Monza 4QTMemory EPC 96bits (Up to 480bits) USER 512bits TID64bitsWrite Cycles 100 000timesFunctionality Read writeData Retention Up to 50 YearsApplicable Surface Metal SurfacesRead Range(On Metal) (Fix Reader ThingMagic M6-E 36dBm 4W) Up to 900cm - (US) 902-928MHz on metalRead Range(On Metal) (Handheld Reader OP9908 R2000 33dBm 2W)Up to 500cm - (US) 902-928MHz on metalWarranty 1 YearPhysical SpecificationSize 95x25mm (Hole D3.5mm)Thickness 3.5mmMaterial High temperature materialColour Black(Red Blue Green White)Mounting Methods Adhesive ScrewWeight 18.0gEnivironmenal SpecificationIP Rating IP68Storage Temperature -40 to 150 Operation Temperature -40 to 100 Certifications Reach Approved RoHS Approved CE ApprovedMore info view www.oppiot.com OPP9525.htmlOPP IOT is a leader in Radio Frequency Identification with the widest selection of custom built RFID tags and labels available.OPP IOT offers dozens of unique designs and constructions RFID tags. Our experts have a proven track record in solving your most challenging RFID problems and can assist in implementing a strategy that is right for you OPP IOT also can create develop RFID tags to meet your unique material property or specific environmental requirements. Innovators in identification for more than 10 years OPP IOT designs and manufactures RFID tags for harsh environments and long-term durable outdoor applications. Our expertise in encapsulations materials and partnerships with inlay makers like Alien Avery SmarTrac Xerafy HID and TROI allow us to provide multiple solutions to fit your environment.More info please Contacts us OPP IOT Technologies CO. LTD.Address 2104 Room SANDI International Finance Centre 249 MingXin Street LongQiao ChengXiang Putian City Fujian P.R ChinaP.C 351100Tel (00865942790031E-mail info(at)oppiot.comWhatsApp 86 180 3034 2267Website www.oppiot.com
