NEW CLARK 1440 Precision Gap-Bed Engine Lathe (Fullerton, CA)

  1. Advertigo UNITED STATES /Agriculture and Farming /Fullerton, CA /This page

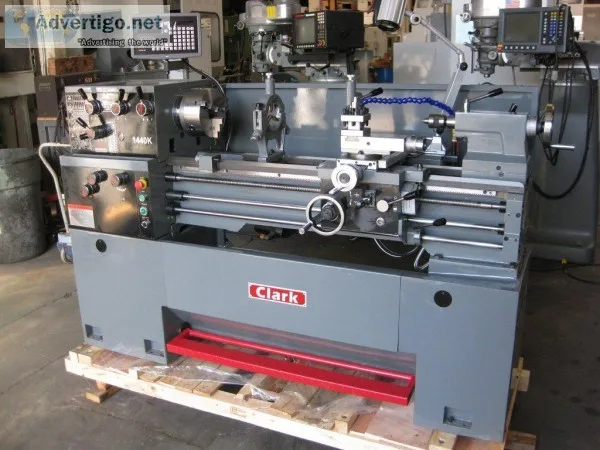

NEW CLARK 1440 Precision Gap-Bed Engine Lathe

Clark 1440 Precision Gap-Bed Engine Lathe Manufacturer ClarkModel 1440KS N Year New Specifications Swing Over Bed 14 Swing Over Cross Slide 8.5 Swing in gap 20 Distance between centers 40 Spindle bore 1.5 Spindle Nose D1-4Taper in Nose MT3Speeds 12-speeds 40-1800 rpmCross Slide Travel 6-3 8 Top Slide Travel 3.5 Lead Screw Thread 8 TPIThreads (Inch) 4-112 TPIThreads (Metric) .45-7.5 mm pitchTailstock quill diameter 1-21 23 Tailstock quill travel 4.75 Tailstock quill taper MT3Spindle motor 3 HPMachine dimensions 79 x 30 W x 59 Machine Weight 2500 lbs Equipped With 2-axis digital readout system3-jaw chuckSteady restFollow restCoolant systemRemovable front chip tray access panelFoot brakeCenter sleeveDead Center4-way tool postManualsWork lightChange gearsFoot PadsTools In-depth Description D1-4 Camlock spindle is supported by precision tapered roller bearingsHeadstock gears are made from high tensile steel hardened & groundBedways are induction hardened & ground to a Rockwell 65 C-scaleHeadstock hears run on splined shaftsMachine is built to imperial & metric system

05-09-2025 UNITED STATES, Fullerton, CA
