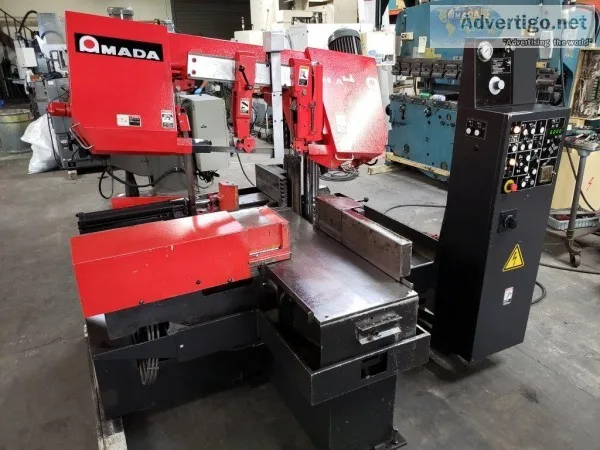

AMADA HKA-400 Fully Automatic Horizontal Bandsaw w Mitering 12.5 (Fullerton, CA)

AMADA HKA-400 Fully Automatic Horizontal Bandsaw w Mitering 12.5

Amada HKA-400 Horizontal Automatic Mitering Bandsaw Description In absolute excellent condition both working & cosmetically.Rare late model Amada HKA-400 bandsaw with all the bells & whistles. Made in Japan This saw retails for 56 000 new Features fully auto walk-away operation with mitering capability. Everything on this machine is in 100% working condition and comes loaded with features.Original Paint This machine was well taken care of. Backed by our 30-day return privilege. Please also view the video on youtube s youtu.be pb1OFcFDBKE Manufacturer AmadaModel HKA-400S N 40000024Year 2013 Specifications Capacity Round Diameter 12.6 at 90 degrees 8.9 at 45 degrees 3.9 at 60 degrees Cutting Capacity Rectangle (WxH) 16 x 11 at 90 degrees 8.9 x 11 at 45 degrees 3.9 x 11 at 60 degreesWork Load Capacity 880 lbs Blade and Vise Operation Dimensions (LxTxW) 12.9 x 0.042 x 1-1 4 Blade Speed 100-325 ft. min. InverterTension Control Manual - Split ClutchTop Limit Setting Automatic Setting with Quick Approach FeelerCutting Control Oil Pressure Flow ControlValveType Front and Main ViseControl Hydraulic Full Stroke Cylinder Motors Saw Blade Motor 3 HPHydraulic Pump Motor 1 HPCutting Fluid Pump Motor 1 10 HP Power Supply Voltage AC220V - 10% 3 PH 60 Hz All other Voltages require transformerPower Requirement 10.7 kVA Cutting Fluid and Hydraulic Tank Capacity 10.7 gal.Pump Type ElectricPressure Setting 391 psi Chip Disposal Manual Material Index Index Mechanism Shuttle ViseStroke 15.7 Length 2.4 x 39.3 Number of Input Station 1Number of Cut Off Pieces 1-9999Remnant Length 2.8 Machine Dimension Head Up Position 84.3 x 92.3 x 73.4 (WxLxH)Machine Dimension Head Down Position 84.3 x 92.3 x 64.0 Table Height (above Floor) 30.3 Machine Weight 3528 lbs Equipped With 8 degrees Saw Head Cant60 degrees Miter CapabilitiesAuto Index Only at 0 degreesDirect DriveFull Stroke ViseInverter Blade Speed ControlLight Beam MarkingPost Construction Type Saw HeadExtra Blades In-depth Description Saw Head Frame The rigid C sectionframe carries the mountings for the two bandwheels heavy-duty worm gear drive reducer band drive motor and guide arm mountingsupports.Band Wheels and Drive System Theinverter-controlled band drive motor isdirectly coupled to the worm gear reducer eliminating the friction losses found invariable-speed pulley drive systems. Thedrive wheel transmission is designed andmanufactured by Amada to provide high efficiency speed reduction (with no externalcooling required) to deliver more power to thedrive wheel. Band speed is set using the bandspeed adjustment knob on the control panel.Canted Head and Single-Column Mounting The head is canted 8 to enable the machineto cut rolled sections (e.g. I-beams orrectangular tubing) at significantly fasterrates as the blade is never in full contactwith the horizontal section of the material.The single-column mounting enables thesaw guides to be much closer together ascompared to scissor-type machines whichimproves the cutting performance.Full-Stroke Clamping Vise The full-strokeclamping vise reduces the operator setuptime for different widths of material.Manual Vise Inching Control The viseinching control enables the operator to moreaccurately locate the work piece for the cutby inching the vise. Then with the help ofthe shadow line projector the operator canmake any small adjustments necessary to theposition for the desired cut.Guarding The saw band is covered by heavy gauge guarding in all non-cutting areas improving operator safety.
